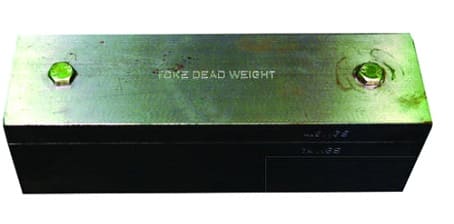

The Dead Weight is used to check the Intensity of Magnetism of Magnetic Particle Inspection Yokes. The Test Weight Bar – 4.5 kgs. +/- 0.5% is supplied with a certifying weight and tolerance. The Bar complies with the following specifications:

⦁ MIL-STD-1949 Paragraph 5.8.5.4.

⦁ MIL-STD-271-E & F (SHIPS) Paragraph 4.3.1-6.2.

⦁ ASTM E 1444-05 Paragraph 7.3.4.

⦁ ASTM E V ART7.

⦁ ASTM E709-80 Paragraph 5.2.6.

A Certificate of Conformance is supplied in accordance with AS3912.1, ANSI/NCSL-2-150-1, ISO 100012-1, BS667 and ASTM E1444-05.

These test weights have been designed to interlock together so that four blocks can be adapted to an 18 kgs test weight for DC Yokes. We can provide you both weights separately.
